Model features:
- Wingspan: 456 mm / 17.95 in
- Wing size: 3.7 dm² / 0.39 ft²
- Flying weight: 30 g / 1.05 oz.
- Fuselage length: 290 mm / 11.41’
- Scale: 1:30
---------
You have the following kit options to choose from for the Etrich Taube:

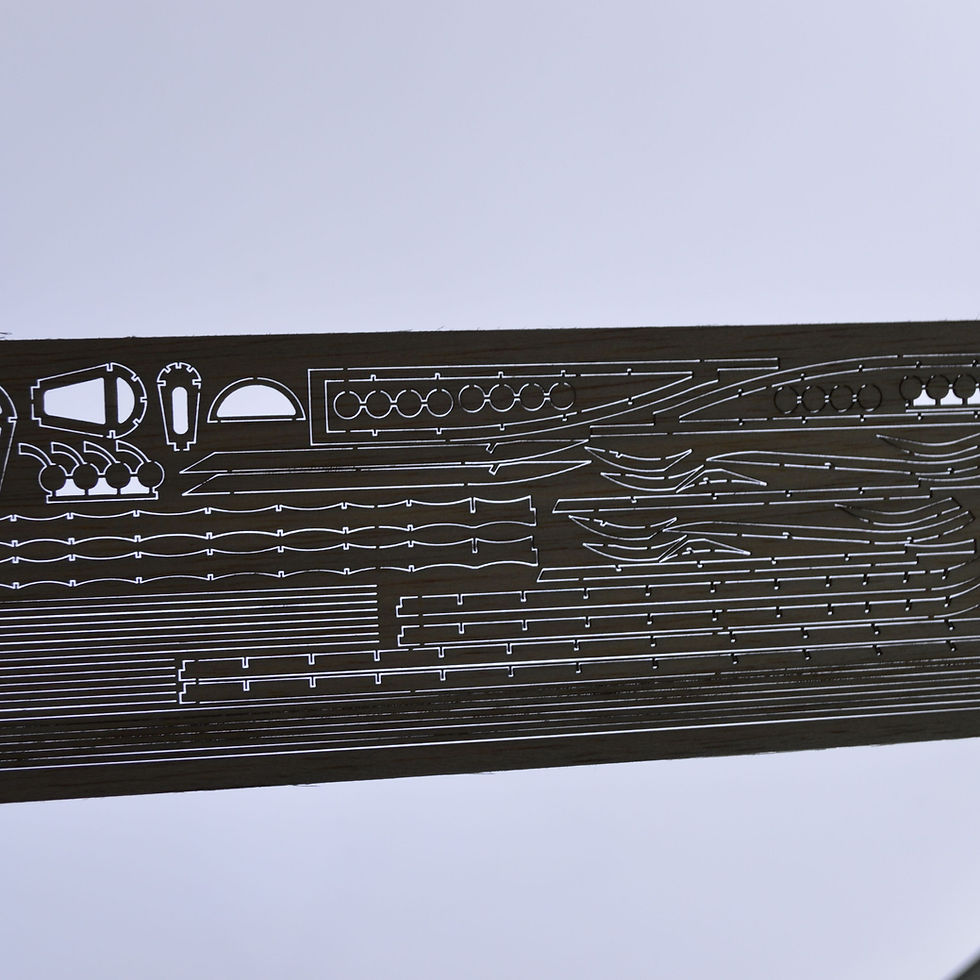

- Option 1: Standard KIT (complete kit but without electronics and special accessories)
- Option 2: Standard KIT as a stand model (complete kit with extra spoked wheels, pilot figure, wooden propeller)
- Option 3: Standard KIT + servos + motor set (complete kit with 2 x 1.7 g rotary servos, 2 x 1.6 g linear servos, 1 x 8520 coreless motor set)
- Option 4: Standard KIT + servos + motor set + receiver suitable for FUTABA (complete kit with extra 2 x 1.7 g rotary servo, 2 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-S receiver suitable for Futaba) - all-round carefree package!
- Option 5: Standard KIT + servos + motor set + receiver suitable for SPEKTRUM (complete kit with extra 2 x 1.7 g rotary servo, 2 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-D receiver suitable for Spektrum) - all-round carefree package!
- Option 6: Standard KIT + servos + motor set + receiver suitable for FLYSKY (complete kit with extra 2 x 1.7 g rotary servo, 2 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-FS receiver suitable for Flysky) - all-round carefree package!
- All accessories at a glance: Click here!
---------
Overview of recommended accessories:
- Transmitter with at least 5 channels, suitable are e.g. Futaba T6K, Spektrum DXS, Flysky FS046 i6X (all not available from us)
- Receiver with at least 5 channels (up to 5 grams), suitable are our Ma-RX42 receivers (compatible with Futaba, Spektrum or Flysky transmitters, all available from us)
- Linear servos or rotary servos (mini 1.00 JST connector); up to 2.5 grams (for elevator, aileron and rudder), suitable are our 1.7 g rotary servos and 1.6 g linear servos (all available from us)
- Motor up to 8 grams, with approx. 50 grams thrust, 100 - 138 mm propeller, no external ESC system required (if our Ma-RX42 receiver is installed), our 8520 Coreless Motor Set with propeller is suitable (available from us)
- Battery from 1s LiPo 100 mAh, suitable are e.g. FLITEZONE 1s 150 mAh MCX and E-flite 1s 150 mAh PH 1.25 (all not available from us)
- Superglue (CA), Wood glue, Model making knife, Model making needles (thin), Cutting underlay, Clamping varnish (various colours available), Clamping varnish thinner, Pore filler, Fine hair brush (all not available from us)

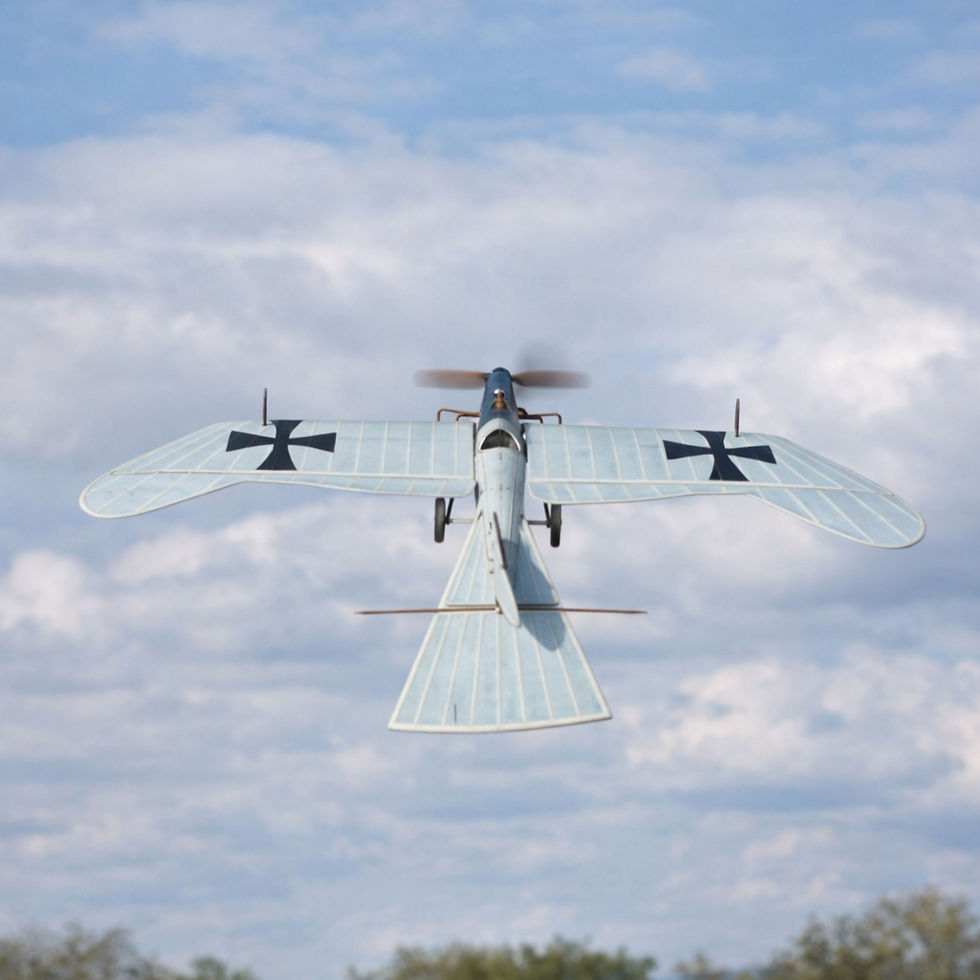

Etrich Taube Slow Flyer kit, 456 mm wingspan, 1:30, kit Tony Ray
The Etrich Taube was developed at the beginning of the 20th century by the Austrian designer Igo Etrich and is considered one of the first successful monoplane aircraft.
Thanks to its pigeon-shaped wings, it had remarkable flight stability for the time, making it a popular training and demonstration aircraft.
Its design was built under license by various manufacturers and was used briefly as a reconnaissance aircraft during the First World War.
However, due to its lightweight construction and lack of armament, it was soon inferior to faster and better armed opponents.
Some restored examples can now be seen in museums and are a reminder of the pioneering era of aviation.
