Model features:
- Wingspan: 358 mm / 14.09’
- Wing size: 4.7 dm² / 0.5 ft²
- Flying weight: 48 grams / 1.69 oz.
- Fuselage length: 280 mm / 11.02’
- Profile type: Clark-Y


---------

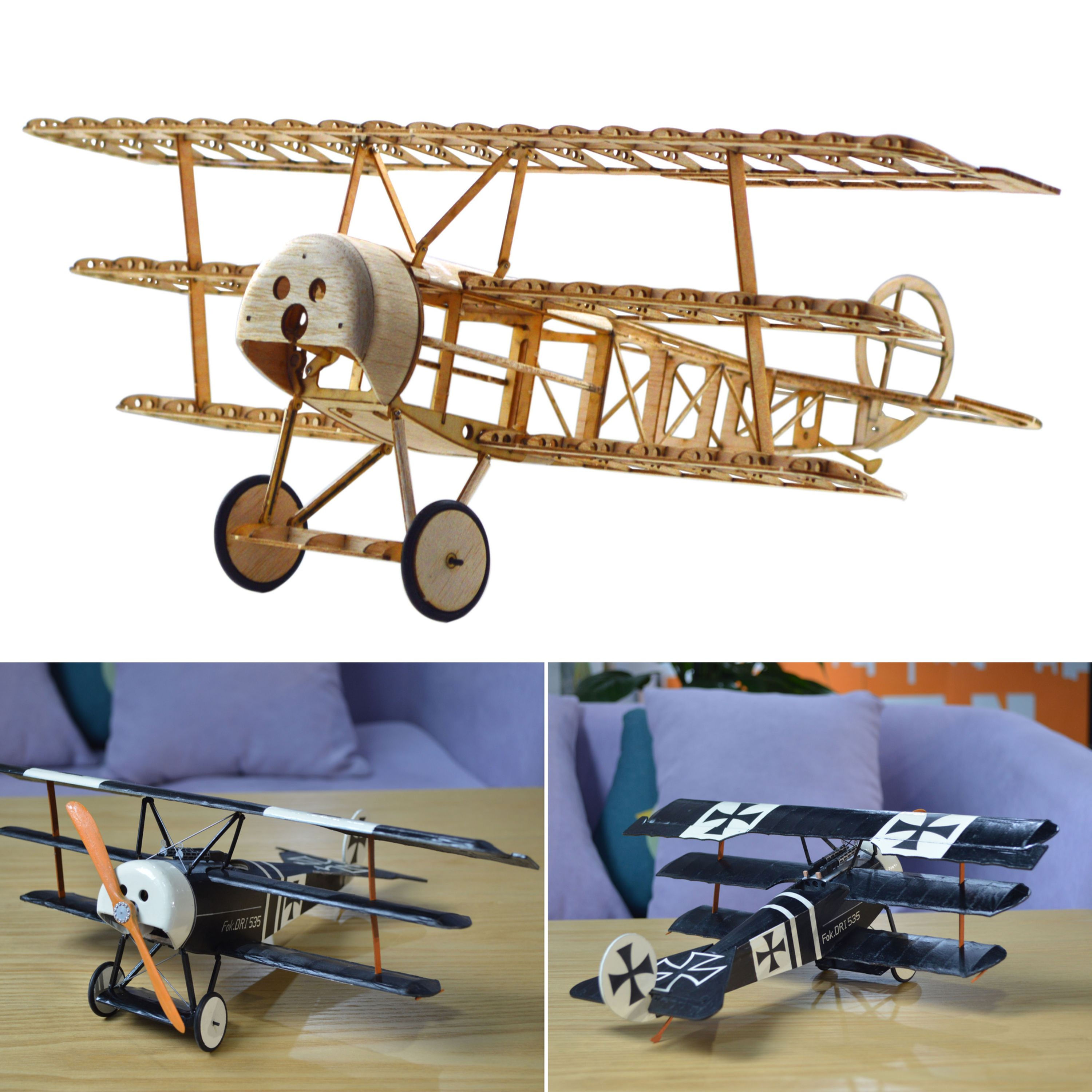

You have the following kit options to choose from for the Fokker Dr.1:

- Option 1: Standard KIT (complete kit but without electronics and special accessories)

- Option 2: Standard KIT as stand model (complete kit with extra spoked wheels, pilot figure, wooden propeller)

- Option 3: Standard KIT + servos + motor set (complete kit with 2 x 1.7 g rotary servos, 1 x 1.6 g linear servo, 1 x 8520 coreless motor set)

- Option 4: Standard KIT + servos + motor set + receiver suitable for FUTABA (complete kit with extra 2 x 1.7 g rotary servo, 1 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-S receiver suitable for Futaba) - all-round carefree package!

- Option 5: Standard KIT + servos + motor set + receiver suitable for SPEKTRUM (complete kit with extra 2 x 1.7 g rotary servo, 1 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-D receiver suitable for Spektrum) - all-round carefree package!

- Option 6: Standard KIT + servos + motor set + receiver suitable for FLYSKY (complete kit with extra 2 x 1.7 g rotary servo, 1 x 1.6 g linear servo, 1 x 8520 coreless motor set, 1 x Ma-RX42-FS receiver suitable for Flysky) - all-round carefree package!

- All accessories at a glance: Click here!


---------


Overview of recommended accessories:
- Transmitter with min. 4 channels, suitable are e.g. Futaba T6K, Spektrum DXS, Flysky FS046 i6X (all not available from us)

- Receiver with at least 4 channels (up to 5 grams), suitable are our Ma-RX42 receivers (compatible with Futaba, Spektrum or Flysky transmitters, all available from us)

- Linear servos or rotary servos (mini 1.00 JST connector); up to 2 grams (for elevator, aileron and rudder), suitable are our 1.7 g rotary servos and 1.6 g linear servos (all available from us)

- Motor up to 8 grams, with approx. 50 grams thrust, 100 - 138 mm propeller, no external ESC system required (provided our Ma-RX42 receiver is installed), our 8520 Coreless Motor Set with propeller is suitable (available from us)

- Battery from 1s LiPo 100 mAh, suitable are e.g. FLITEZONE 1s 150 mAh MCX and E-flite 1s 150 mAh PH 1.25 (all not available from us)

- Superglue (CA), Wood glue, Model making knife, Model making needles (thin), Cutting underlay, Clamping varnish (various colours available), Clamping varnish thinner, Pore filler, Fine hair brush (all not available from us)
